Factory Wholesale Home Decoration Project Flame-retardant Wires and Cables. Single-core Polyvinyl Chloride BVR 25 square
原价为：$234.00。$230.00当前价格为：$230.00。

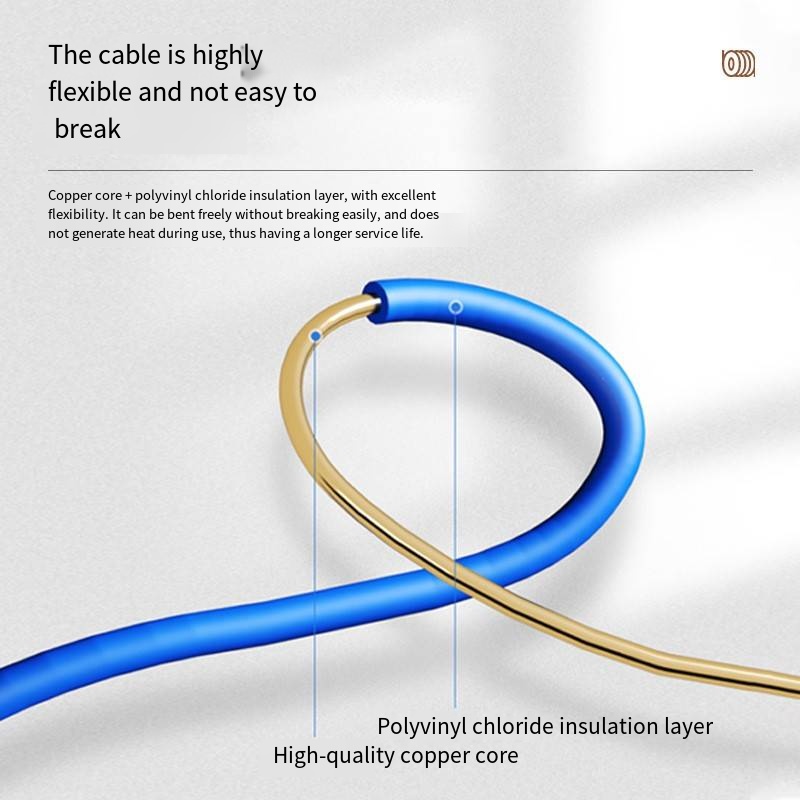

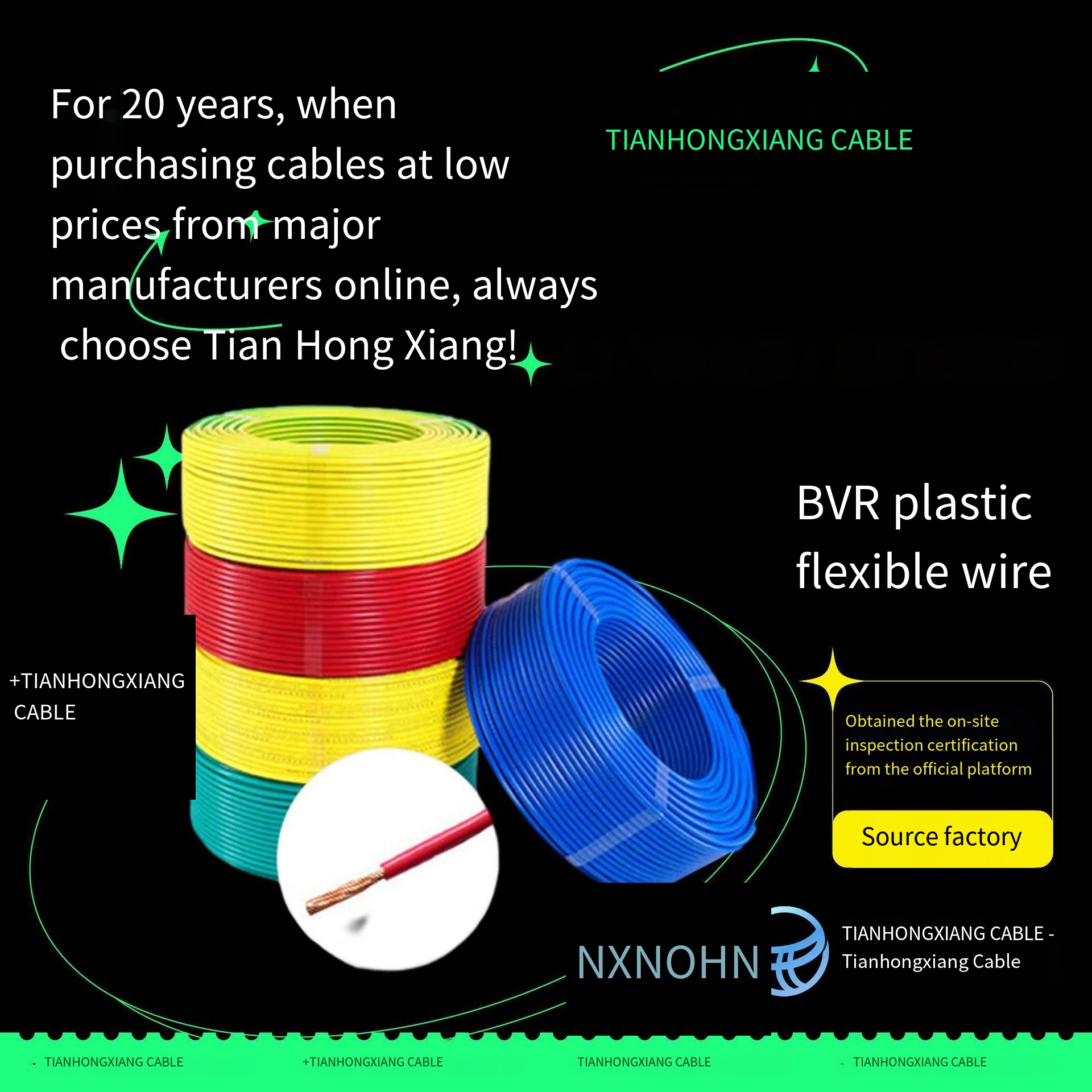

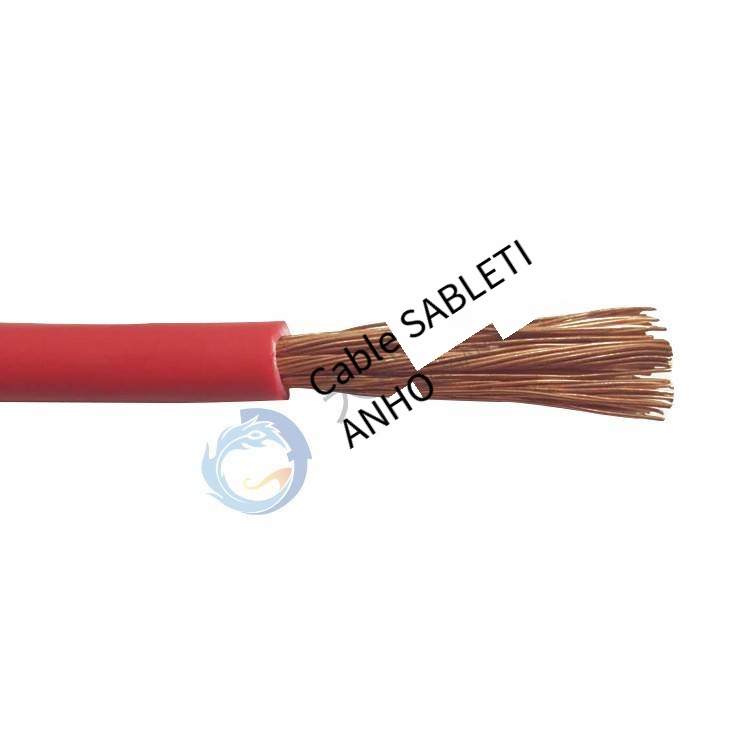

ZC – BVR 25mm² is a single – core, multi – strand flexible copper wire with flame – retardant PVC insulation, rated at 450/750V, suitable for home decoration and project power main lines, large – power equipment wiring, and complex routing, which is flexible and safe.
Core Specifications & Structure
| Item | Detail |
|---|---|
| Model | ZC – BVR 25mm² (B=Building Wire; V=PVC Insulation; R=Flexible; ZC=Flame – retardant Class C) |
| Conductor | 98 strands × 0.58mm oxygen – free copper, 20℃ DC resistance ≤0.727Ω/km, meeting GB/T 3956 – 2008 Class 5 conductor standards |
| Insulation | Flame – retardant PVC, thickness ≥1.0mm, long – term working temperature 70℃, max outer diameter ≤10.2mm |
| Voltage Rating | 450/750V AC; bending radius ≥4× cable outer diameter |
| Certification | CCC, ZC flame – retardant certification, in line with GB/T 5023.3 – 2008 |
| Reference Weight | 304kg/km; 100m/roll standard packaging |
21
项目 个 3 小时
22
人们现在在看这个产品！
评论
相关产品

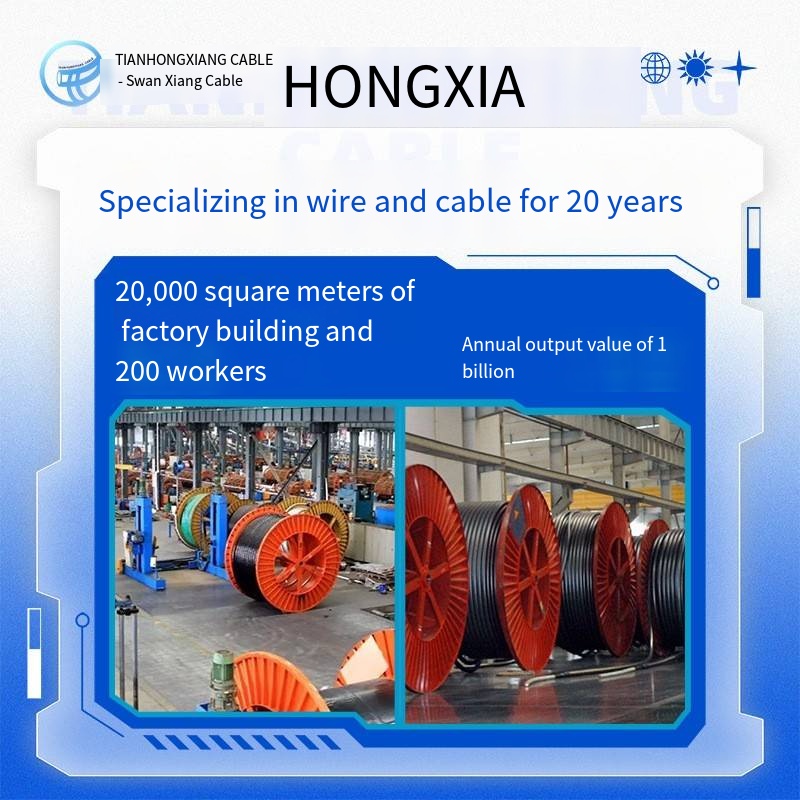

We are a large-scale direct-sale manufacturer.
