Tianhongxiang Home Decoration BVR 1.5 Square Multi-strand Flexible Wire, BVR Wire Factory Direct Supply for Home Decoration
$23.50

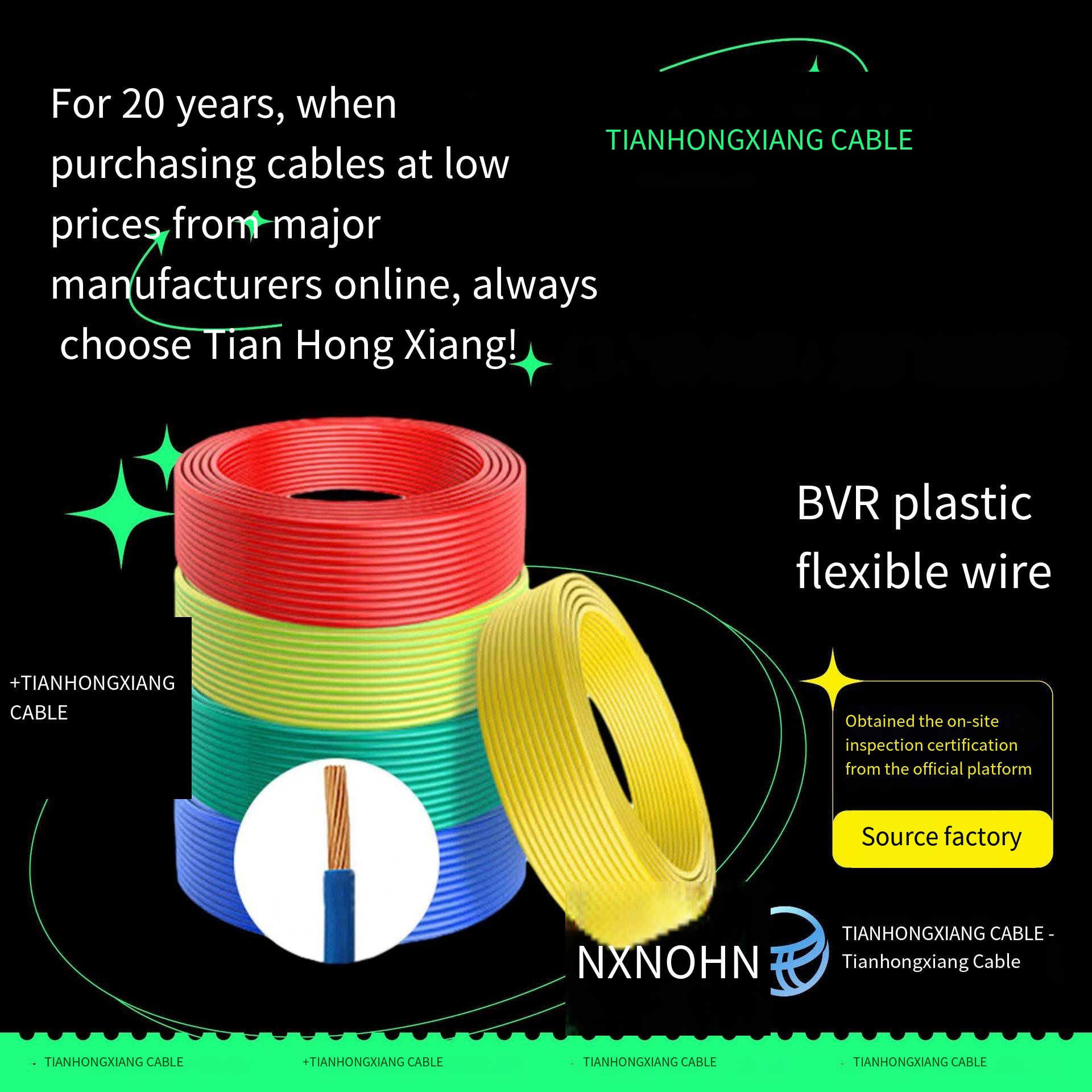

Tianhongxiang BVR 1.5mm² Multi – strand Copper Core Flexible Wire (Tianjin Factory Direct) – Home Decoration Essential
Tianhongxiang BVR 1.5mm² is a Tianjin – produced national standard multi – strand flexible wire, featuring oxygen – free copper core and flame – retardant PVC insulation, rated at 450/750V. It is ideal for home decoration lighting circuits, switch control lines, and auxiliary wiring, balancing flexibility, safety, and cost – effectiveness, and is easy to thread through pipes and hidden in walls.
Core Specifications & Structure
| Item | Detail |
|---|---|
| Model | ZC – BVR 1.5mm² (Standard 70℃, high – temp 90℃/105℃ optional) |

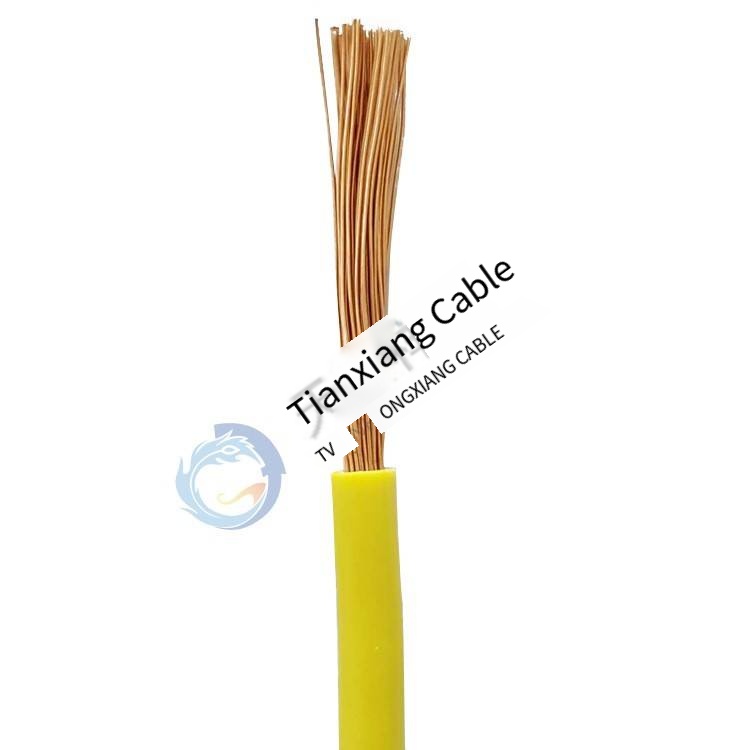

| Conductor | 7 strands × 0.52mm oxygen – free copper, 20℃ DC resistance ≤12.1Ω/km, GB/T 3956 – 2008 Class 5 conductor |
| Insulation | Flame – retardant PVC, thickness ≥0.6mm, max outer diameter ≤3.4mm |
| Voltage Rating | 450/750V AC; bending radius ≥4× cable outer diameter |
| Certification | CCC, ZC flame – retardant, compliant with GB/T 5023.3 – 2008 |
| Packaging & Weight | 100m/roll; reference weight 110kg/km |
Key Advantages
- Flexible Installation: 7 – strand thin copper wire structure, easy to bend and not easy to break. It can easily pass through narrow pipe holes and complex corners, reducing construction difficulty and saving labor costs.
- Flame – Retardant & Safe: ZC – grade insulation has self – extinguishing performance, low smoke and low toxicity, meeting home fire safety standards.
- Stable Conductivity: Oxygen – free copper core with purity ≥99.99% ensures low resistance, low heat generation, and reliable load – bearing for the rated current of 19-25A.

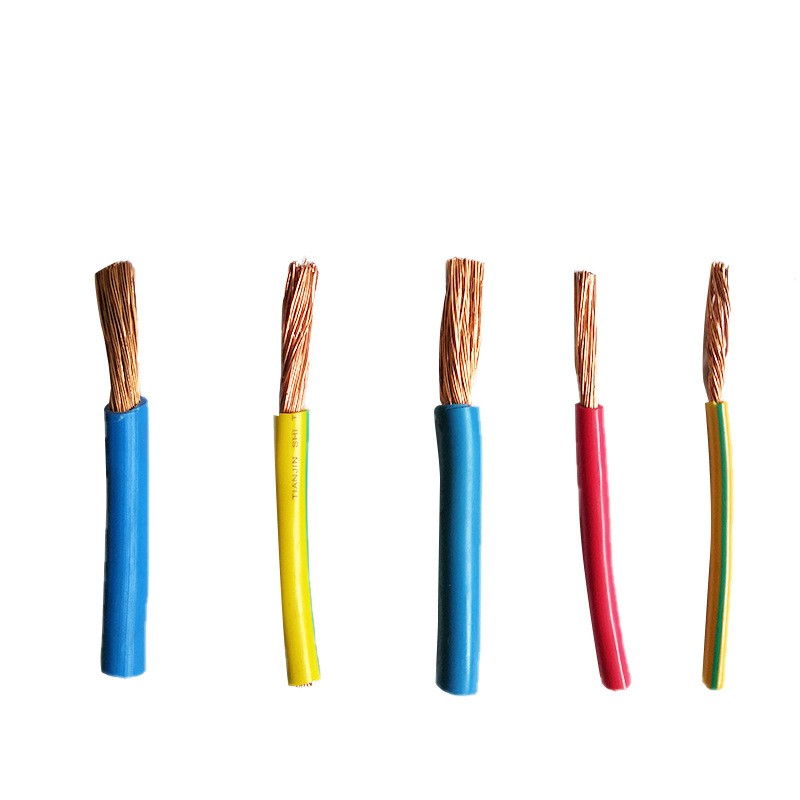

- Standard Color Coding: Red/Yellow/Green (live wire), Blue (neutral wire), Yellow – Green (ground wire), which avoids wiring errors and facilitates maintenance.
- Long – Lasting Insulation: High – density PVC insulation, wear – resistant, moisture – resistant, acid – and alkali – resistant, with a service life of over 20 years.
Application Scope
