Special Cable for Home Decoration Projects, Oxygen-free Copper Core BVR Plastic Flexible Wire, Single-core 19-strand 6-square
$75.00

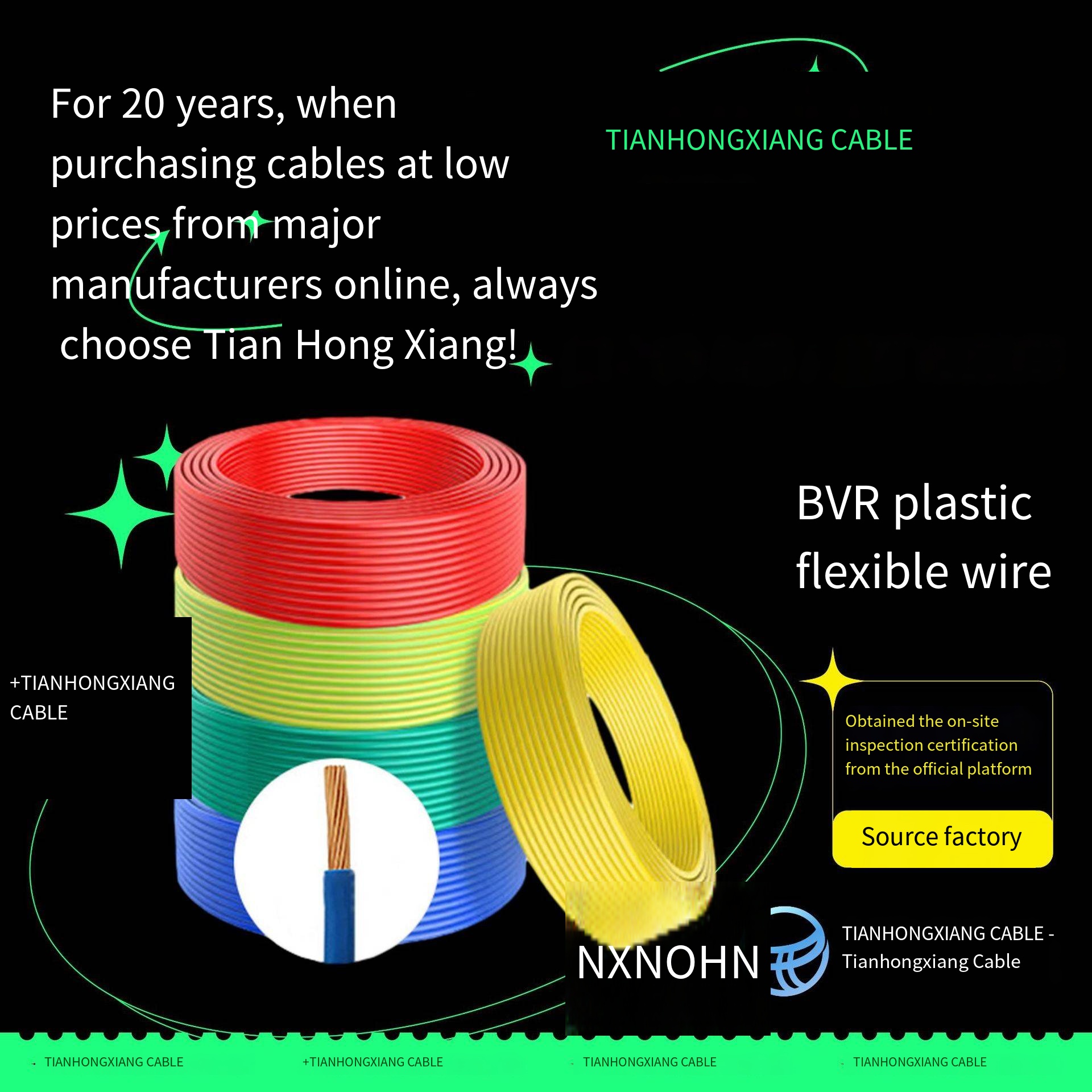

Special Cable for Home Decoration Projects: Oxygen-free Copper Core BVR 6mm² Flexible Wire (19-strand Single-core)
BVR 6mm² (19-strand single-core) flexible wire is a high-performance building wire designed for home decoration and small engineering power distribution. It adopts oxygen-free copper core and PVC insulation, with excellent conductivity and flexibility, and is suitable for medium-power circuit wiring in residential scenarios.
Core Specifications & Structural Parameters
| Item | Detailed Specification |
|---|---|
| Product Model | BVR 6mm² (19-strand single-core) |
| Model Definition | B=Building wire; V=PVC insulation; R=Flexible multi-strand structure |

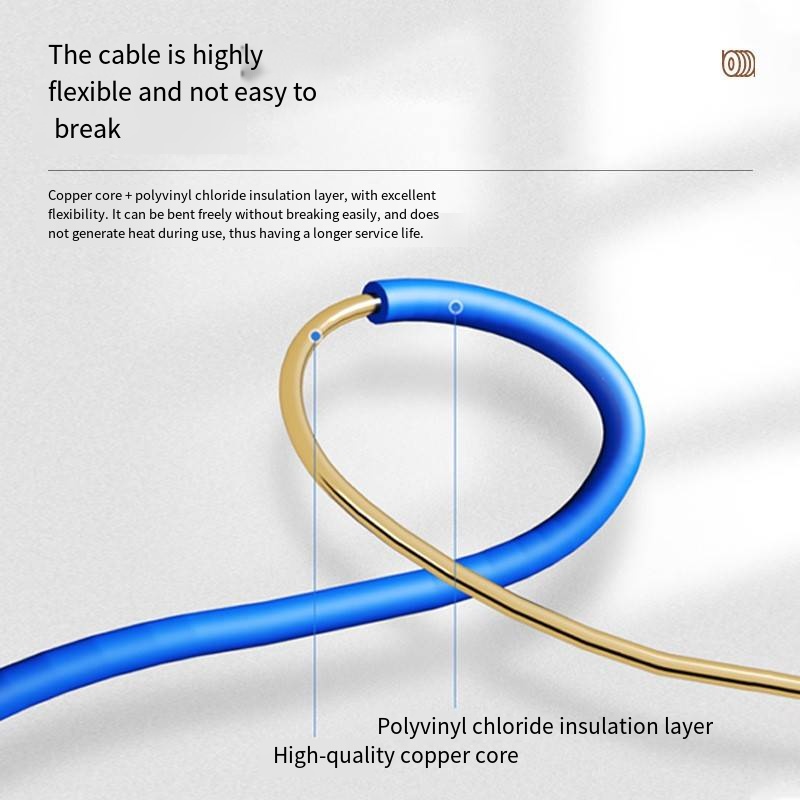

| Conductor Structure | 19 strands × 0.64mm high-purity oxygen-free copper (≥99.99% copper content) |
| Conductor Performance | DC resistance ≤3.08Ω/km (20℃), in line with GB/T 3956-2008 Class 5 conductor standard |
| Insulation Material | High-density flame-retardant PVC (ZR/ZC grade optional) |
| Insulation Thickness | ≥0.8mm, long-term working temperature -15℃~70℃ |
| Voltage Rating | 450/750V AC |
| Max Outer Diameter | ≤6.8mm |
| Standard Length | 100m/roll |
| Reference Weight | ~71.2kg/km |
| Certification | CCC mandatory certification, ISO9001 quality system certification |
